Thursday, March 5, 2020

Development of Spooks gaff rig.

I’ve been playing with the rig, the sails, and the settings on Spook, each little change has seen a slight improvement in her windward performance, and those little changes add up to a quite noticeable boost in both pointing angle and speed, particularly upwind.
I’m at a stage where she’s very competitive against boats with “modern” rigs upwind, and can blow past a lot of them downwind, that latter being due in part to the fact that she carries a lot more sail than most of them.

But she feels, especially in light weather, as though she could carry a bit more sail, she’s got a lot of ballast, and with the carbon fibre mast and gaff I’ve built having much reduced the weight aloft, more sail is a real possibility.
Her new mainsail is setting well, its about another 15 sq ft in area compared with the old one, but still, I think she’ll handle more.

Her jib is quite small, has a hook in the leach which Dennis the sailmaker has not been able to cure, the fabric is a bit too stretched so we’ve been discussing the cut and shape of a new jib.
But to experiment a bit, I asked on line if anyone had a second hand Flying Dutchman genoa that they’d let go cheap, and I got one ( thanks John).
Its light so will be a light weather only sail, will need hanks  but I think that otherwise it might go straight on.
Its longer in the luff but I’ve length to spare up the forestay, longer in the foot and leach so the clew comes down to where I want it, I’ll have to put new jib sheet blocks on but that’s ok, I can leave the old ones in place and use the old jib when it blows up a bit.

The idea here is that with the help of Conway sails and covers, ( that’s Dennis the sailmaker, good guy) I can experiment with the bigger lighter, and very cheap sail until I know what the boat likes then design and have Dennis build one in slightly heavier cloth that will do the job.

So whats brought all this on?  Well, when I got Spook, nee “May”, a name I felt didn’t suit the tough and capable little ship, she didn’t handle well and felt as though there was a lot of performance still to come.  I’ve been working on that for a while, built a new mast and gaff, ( took 14 kg, that’s over 30 lbs) out of the rig high up which made a noticeable difference to her stability) had a new mainsail built, put more ballast inside to help the near half ton of lead in her keel, chenged her fore and aft trim, reshaped the foil section on her daggerboard, moved the jib sheeting points around a bit, and a few other things.

A month or so ago I raced her in the small boat class at the Mahurangi Regatta, and she’s getting close to competitive. I came in third by about the length of the bowsprit after getting into a tacking duel on the finish line, the long keeled heavy boat being at a real disadvantage in that game I lost that second to the boat that had won the previous and several other years.
That boat by the way was one of my Pathfinder designs, and the winner was sailing one of my Navigator designs so, even though I was third, in a way I was also first and second which was a buzz.

In light weather she does a horizon job on most boats of her size, all that sail area helps, she self steers on quite a wide range of courses, and its not uncommon for me to sit reading a book while she trucks along, but, but, but, its hard to stop fiddling.

Why am I putting so much effort into a boat not of my own design? One, its hard to see that there is some improvement possible and not try to achieve that, and the other, is that everything I learn here is directly applicable to my design work.

So, back to the new jib, here’s a pic of the old sail laid out over the new ( to me) one.  The clew being lower and further aft will enable me to position the sheet leads to control the leach tension and sail twist better, with that in place I’ll be using the mainsheet traveller more to control the slot between the two sails, and with the increase in sail area plus better control of sail shape and trim .  I’m hoping for another little gain. They add up.

 The big white dog is not mine, he's a friendly thing that comes over from next door.  My little terrier has him pretty much under control though.
You can see the difference in sail size, its going to be interesting to see how the boat feels with this bigger jib up there, she may require a little change in her ballast, certainly a different sheeting position for the jib sheets.  More to play with, lots of interesting things to try.



 To get Spook balanced with the big main aft, and the small jib, I've ballasted her a little bit stern down, as you see her she handles pretty well, but in light weather she feels as though she'll cope with more sail, so, here goes, we'll try it and see.


Sunday, January 12, 2020

The month of the pumps


This was supposed to be the “summer of the paintbrush”, and yes, I have got quite a bit of that done but for a while there it was the “month of the pumps”.  Kairos has four water pumps that deliver water to the sink, the hot water heater and the handbasin in the head,  and the last one pumps out the shower when that’s in use. It has a macerator pump on the head, and three electric bilge pumps plus a manual one, and one more which is the engine cooling pump.  Ten in all, some of which have quite complex plumbing.

Would you believe that over about a month I’ve worked on every one of those!
I’ve replaced two of the domestic fresh water pumps, and overhauled two more. I’ve replaced two bilge pumps and repositioned one, put a new impeller in the engine cooling pump and put an overhaul kit in the head pump.

Every pump in the old ship has been either replaced or rebuilt.

But one, just one, and that one the worst one, still didn’t do its job.

That’s the head.
So, bearing in mind that the outlet from the head is just below the waterline, and that only thing that could be wrong was the plumbing from the head itself through the holding tank and to the skin fitting with its big ball valve, and that I’d cleaned that ball valve out from outside a week or two ago, I took everything moveable and shifted it from the bow to the stern, anchors, chain, toolkit, bedding and a heap of other stuff, and with the RIB inflatable dinghy on the davits managed to get the bow up enough to get that fitting up to about water level so I could pull the hose off the inside of the fitting then flick it on and off to check that it was still clear. It was, and I only had a couple of buckets of water come in and the bilge pumps took care of in very short order.
I’d already taken the hose off the head outlet, and with a bucket under it had established that the pump itself was working as it should, (sigh of relief, that meant that my overhaul wasn’t a messup) so working back from there took each piece of hose off in sequence.  About halfway back through the five pieces I found that they were packed full of you know what, as full as a politicians  campaign speech.
Cleaning them out and refitting them as I went, I worked along the series, and voila, hard up against the ball valve found a big chunk of cotton wadding and shredded plastic filling the end of the hose and the rest of it packed solid.  Pulled the hose right out, up to the workshop with it, drove an aly pipe through it and then a pullthrough in the same way you’d clean a rifle barrel which  fixed that, hosed the area down with bleach and hot water, and reassembled it all.  Got my garden sprayer, more bleach (lemon scented of course) and got the area as clean as possible then tried it.  Bingo, it all works.

Did much wiping of the very hard to access spaces and took great care in fastening all the hose clamps, and after taking three showers things are back almost to normal.

It wasn’t fun, but gosh its good to have everything working again.

Living on a boat is not all a bed of roses, marine toilets are cantankerous things.

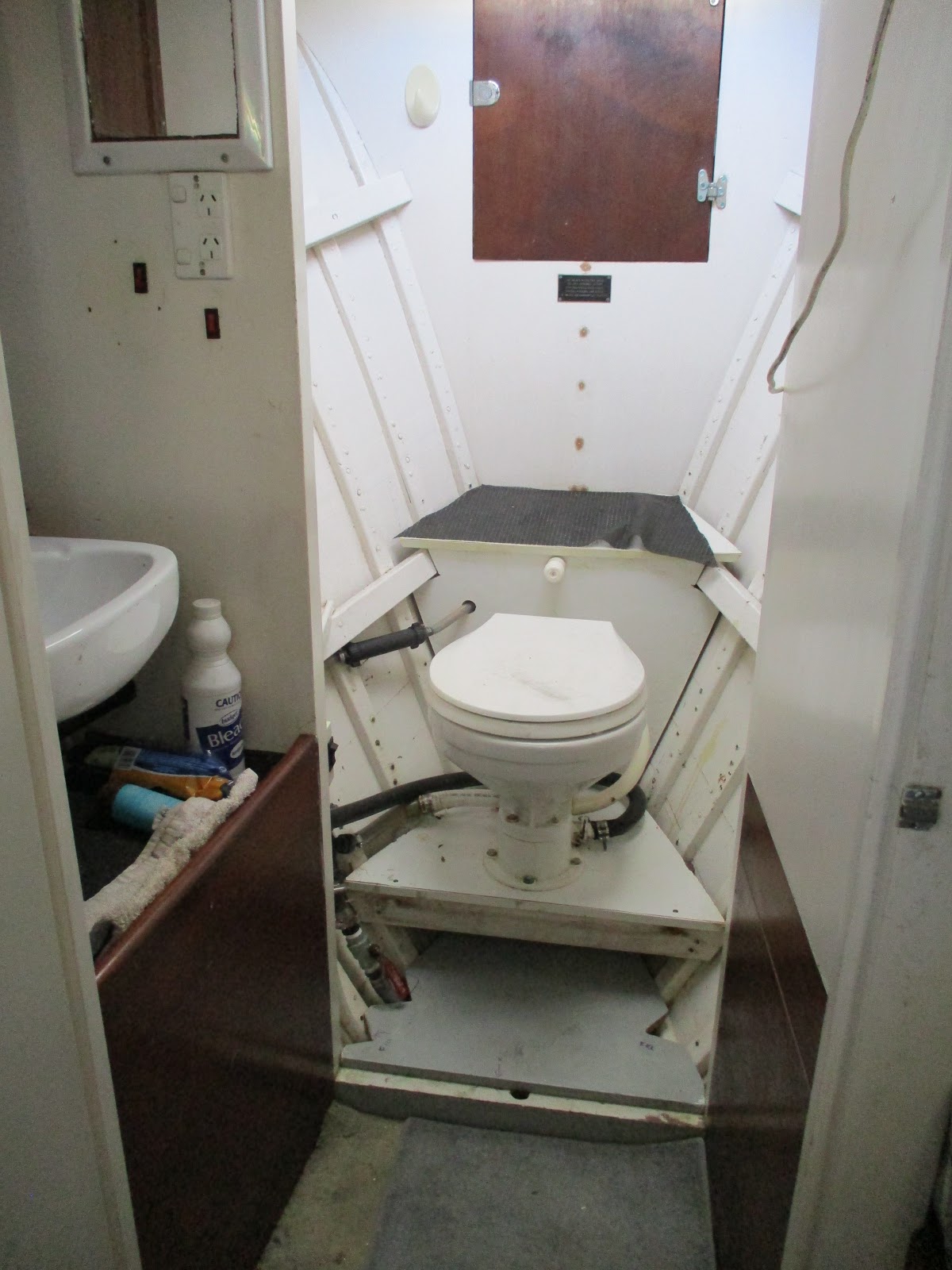

Open for business again.  A very mundane subject I know, but necessary.
